Presentation
- Smart rugged design
- Maximized potential
- Unique user experience
- Unbeatable serviceability
Specifications
Smart rugged design
- Impact-proof counterweight with integrated ladder protection, AC motors and charger plug
- Reinforced guardrails with additional vertical stiles for maximum durability
Maximized potential
- Access all worksites: foldable guardrails, lateral & longitudinal forklift pockets
- IN/OUT usage with no platform weight capacity restriction
Unique user experience
- Proportional movements for precise driving (AC motors)
- Ergonomic upper control box with grab handle & speed selector
Unbeatable serviceability
- Haulotte Activ'Energy Management for battery care
- On-board & remote settings and diagnostic tools with Haulotte Diag, Haulotte Activ’Screen and Sherpal telematics solution

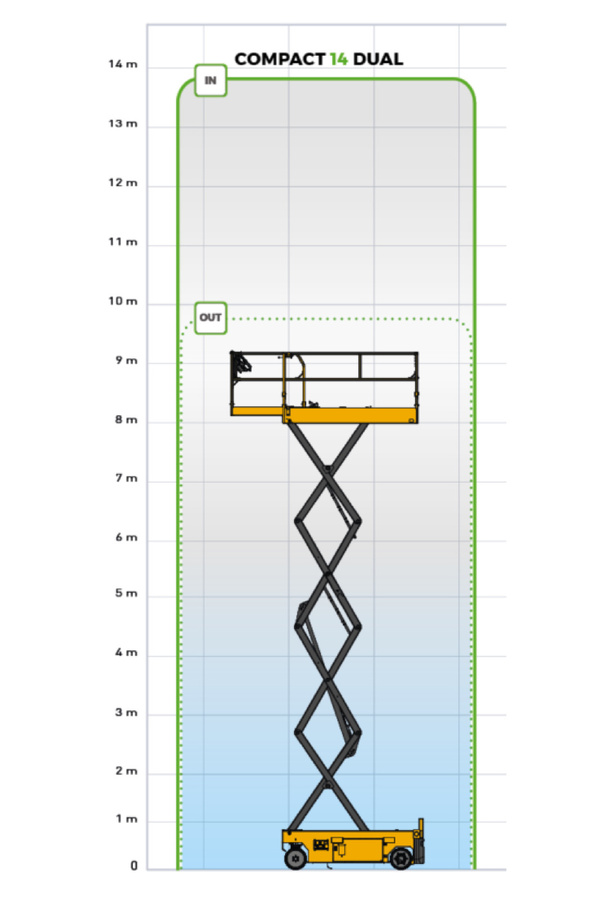

| Working height - indoor | 13.75 m |
| Overall width | 1.2 m |
| Platform height - indoor | 11.75 m |
| Max. drive working height | 9.8 m |
| Max. drive working height - indoor | 11.75 m |
| Lift capacity - inside | 320 kg (3 pers.) |
| Lift capacity - outside | 320 kg (1 pers.) |
| Lift capacity on the extension | 120 kg |
| Platform length | 2.4 m |
| Platform length - extended | 3.32 m |
| Length - extension | 0.92 m |
| Platform width - outside | 1.17 m |
| Height - stowed | 2.72 m |
| Height - guardrails lowered | 2.02 m |
| Length | 2.5 m |
| Wheelbase | 1.86 m |
| Ground clearance - center | 12.5 cm |
| Ground clearance - deployed potholes | 2 cm |
| Ground clearance | 12.5 cm |
| Drive speed | 0.7 / 1.5 / 4.2 km/h |
| Gradeability | 25 % |
| Tilt (longitudinal / lateral) | 3.5° / 1.5° |
| Turning radius - outside | 1.83 m |
| Non-marking tyres | 15 x 5 |
| Batteries | 24 V - 225 Ah (C20) |
| Hydraulic system capacity | 14 l |
| Weight | 3070 kg |
| Working height - outdoor | 9.8 m |
| Platform height - outdoor | 7.8 m |
| Max. drive working height - outdoor | 9.8 m |
- Haulotte Activ'Energy Management: Smart CAN charger with manual battery water filling system
- Motion alarm
- Solid non marking tires
- 2 front steering wheels, 2 rear drive wheels
- Mobile pothole guards
- AC motors
- Front platform extension
- Foldable guardrails
- Lateral & longitudinal forklift pockets

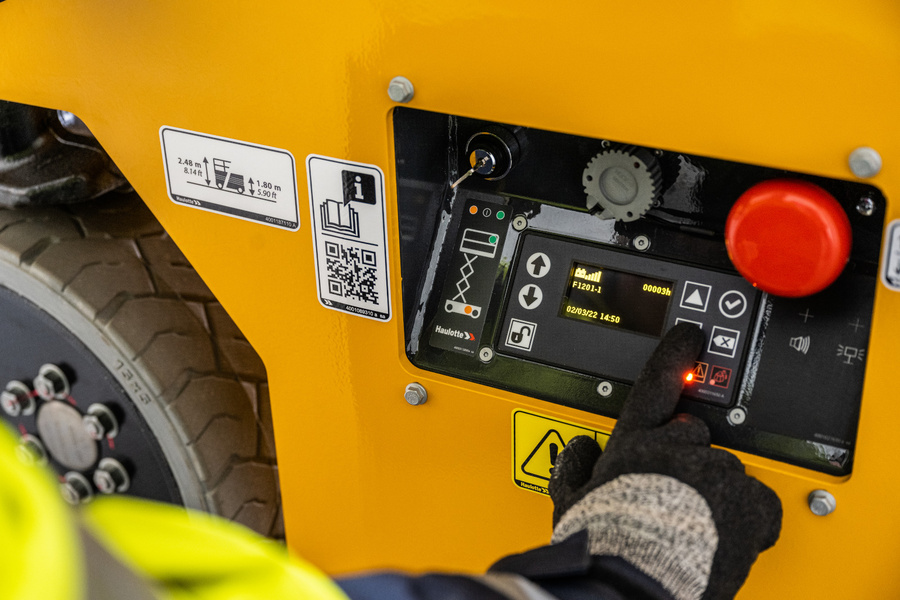

- Haulotte Activ'Screen: on-board diagnostic and setting screen
- Battery access with swing out tray
- 27A multivoltage charger
- Versatile use : outdoor/ indoor
- Single flashing light
- Drop bar
- Haulotte Activ'Energy Management: automatic battery water filling systems
- AGM maintenance-free batteries
- Secondary guarding system
- Telematics solutions
- Pipe cradle
- Panel carrier
- Additional protection of upper & lower control box
- Working light
- Flashing light (dual or 360°)
- Biodegradable hydraulic oil
- Cold weather hydraulic oil
